Performance Tuning and Troubleshooting for SOA Suite 11g Database Issues

Goal

SOA Suite uses various database calls to process the requests. If any issue reported is due to database performance this note will help to diagnose the issue further.

Fix

If the issue reported is due to a database call, the root cause could be one of the following.
1. Database is processing the queries slowly.

a. AWR to analyze the query performance
b. Database Mode - Shared Vs Dedicated

2. Not enough resources on WLS data sources to process the requests.

a. Connection pool waiting

Database is processing the queries slowly

To identify whether the database is processing the queries slowly, collect AWR report at the time of the issue. AWR report will provide query statistics on how much time it took to process the query on various views.

AWR to analyze the query performance

Automatic Workload Repository (AWR) is the report generated by database to collect the performance statistics of the database. By default, oracle database generates snapshots for every hour and keeps the statistics for 7 days.

a. Collecting AWR Report
b. Analyze AWR Report

Collecting AWR Report:

AWR can be collected in multiple ways(through EM Console / through SQL Plus). In this note, we collected AWR report through the script awrrpt.sql.  AWR report should be collected for the time period issue occurred.

Steps to create AWR Report:

1. Login into SQLPlus as sysdba
2. Run $ORACLE_HOME/rdbms/admin/awrrpt.sql
3. Select the type of the report
4. Enter the number of days the report needs to be pulled out.
5. Enter the snapshot id for the beginning and the end. Snapshot id will be listed after performing step 4.
6. Enter the report name / leave default.

Sample AWR Report Collection

SQL> connect / as sysdba
Connected.
SQL> @$ORACLE_HOME/rdbms/admin/awrrpt.sql

Current Instance
~~~~~~~~~~~~~~~~

DB Id DB Name Inst Num Instance
----------- ------------ -------- ------------
704392079 MUTHU 1 muthu


Specify the Report Type
~~~~~~~~~~~~~~~~~~~~~~~
Would you like an HTML report, or a plain text report?
Enter 'html' for an HTML report, or 'text' for plain text
Defaults to 'html'
Enter value for report_type: html

Type Specified: html


Instances in this Workload Repository schema
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

DB Id Inst Num DB Name Instance Host
------------ -------- ------------ ------------ ------------
* 704392079 1 MUTHU muthu mutsubra-pc

Using 704392079 for database Id
Using 1 for instance number


Specify the number of days of snapshots to choose from
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Entering the number of days (n) will result in the most recent
(n) days of snapshots being listed. Pressing <return> without
specifying a number lists all completed snapshots.


Enter value for num_days: 1

Listing the last day's Completed Snapshots

Snap
Instance DB Name Snap Id Snap Started Level
------------ ------------ --------- ------------------ -----
muthu MUTHU 12927 25 Oct 2011 00:00 1
12928 25 Oct 2011 01:00 1
12929 25 Oct 2011 02:00 1
12930 25 Oct 2011 03:00 1
12931 25 Oct 2011 04:00 1
12932 25 Oct 2011 05:00 1
12933 25 Oct 2011 06:00 1
12934 25 Oct 2011 07:00 1
12935 25 Oct 2011 08:00 1
12936 25 Oct 2011 09:00 1
12937 25 Oct 2011 10:00 1
12938 25 Oct 2011 11:00 1
12939 25 Oct 2011 12:00 1
12940 25 Oct 2011 13:00 1



Specify the Begin and End Snapshot Ids
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Enter value for begin_snap: 12939
Begin Snapshot Id specified: 12939

Enter value for end_snap: 12940

Specify the Report Name
~~~~~~~~~~~~~~~~~~~~~~~
The default report file name is awrrpt_1_12939_12940.html. To use this name,
press <return> to continue, otherwise enter an alternative.

Enter value for report_name:

Hit enter to get the awr report.


Report 2:

SQL> @$ORACLE_HOME/rdbms/admin/awrrpti.sql

Specify the Report Type
~~~~~~~~~~~~~~~~~~~~~~~
Would you like an HTML report, or a plain text report?
Enter 'html' for an HTML report, or 'text' for plain text
Defaults to 'html'
Enter value for report_type: html

Type Specified: html


Instances in this Workload Repository schema
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

DB Id Inst Num DB Name Instance Host
------------ -------- ------------ ------------ ------------
* 704392079 1 MUTHU muthu mutsubra-pc

Enter value for dbid: 704392079
Using 704392079 for database Id
Enter value for inst_num: 1
Using 1 for instance number


Specify the number of days of snapshots to choose from
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Entering the number of days (n) will result in the most recent
(n) days of snapshots being listed. Pressing <return> without
specifying a number lists all completed snapshots.


Enter value for num_days: 1

Listing the last day's Completed Snapshots

Snap
Instance DB Name Snap Id Snap Started Level
------------ ------------ --------- ------------------ -----
muthu MUTHU 12927 25 Oct 2011 00:00 1
12928 25 Oct 2011 01:00 1
12929 25 Oct 2011 02:00 1
12930 25 Oct 2011 03:00 1
12931 25 Oct 2011 04:00 1
12932 25 Oct 2011 05:00 1
12933 25 Oct 2011 06:00 1
12934 25 Oct 2011 07:00 1
12935 25 Oct 2011 08:00 1
12936 25 Oct 2011 09:00 1
12937 25 Oct 2011 10:00 1
12938 25 Oct 2011 11:00 1
12939 25 Oct 2011 12:00 1
12940 25 Oct 2011 13:00 1



Specify the Begin and End Snapshot Ids
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Enter value for begin_snap: 12939
Begin Snapshot Id specified: 12939

Enter value for end_snap: 12940
End Snapshot Id specified: 12940



Specify the Report Name
~~~~~~~~~~~~~~~~~~~~~~~
The default report file name is awrrpt_1_12939_12940.html. To use this name,
press <return> to continue, otherwise enter an alternative.

Enter value for report_name:

The two reports give essential the same output but the awrrpti.sql allows you to select a single instance

Analyze AWR Report
AWR Report has various sections for DBA to analyze DB performance. This note is intended to analyze the database calls related to SOA suite/SQL's generated from SOA. Check whether any of the query related to SOA Suite / the operation took long time on the database in the below AWR Sections. Any query listed on top of the list should be verified to see whether it's normal and if it's not  check whether any known issues reported or file a bug to address the issue.

SQL ordered by Elapsed Time
SQL ordered by CPU Time
SQL ordered by Gets
SQL ordered by Reads
SQL ordered by Executions
SQL ordered by Parse Calls

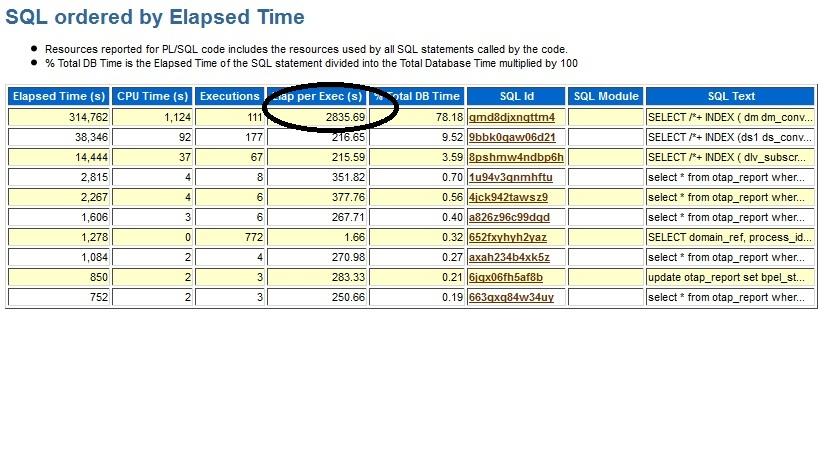

SQL ordered by Elapsed Time


This section lists the SQL's with larger elapsed time. Elapsed time includes CPU time plus any other wait times. Check the elapsed time of individual occurrence is larger and if yes, the SQL execution is having problem. This table lists the SQL in descending order of Total Elapsed time. In the above screenshot the top query elapsed time per execution is 2835.69 seconds which is very high. Check the SQL Query associated with this call. To get the query select the SQL ID (gmd8djxngttm4)


Check whether any known issues reported on the above query execution time and if not we need to check with engineering why this query is taking long time to process.  If the query execution itself is taking long time, the JDBC calls made from SOA will wait till it gets the response back which could cause stuck threads, timeout issues etc.

SQL ordered by CPU Time


Usually the SQL's in the top list in Elapsed time gets into the CPU time as well. But it's not mandatory. If the SQL exists in Elapsed time table but not in CPU time table, then there is an issue with recursion associated with this statement. Larger CPU time usually caused by excessive function calls, missing filter columns in the query results full table scan.

If the query which is in top of the list is from SOA, check the complete query by selecting the "SQL Id" (Queries will be listed at the bottom of the AWR report). Check the table in the database and see whether the filter column(s) in the query is sufficient to identify the unique records or it's doing full table scan/ filter is inefficient. Also check whether indexes are created for the fields in the where class of SQL Query. If not indexes are missing which could result in excessive CPU time.

In the above screenshot, SQL Id (gmd8djxngttm4) is the same SQL which is top in Execution time as well. This query is not having any excessive function calls, possible reason for this call could be full table scan due to missing filter columns.

SQL Ordered by Gets


SQL's listed in this section results large logical reads from DB Block buffers. Usually reading from logical read is desirable but excessive reading from logical also can cause performance issues. High logical read results due to missing indexes on the filter columns or full table scan. Setting proper filter columns or indexes could help result reducing the logical read time.

In the above list, out of 175M buffer gets, 152k buffer gets are from single query which doesn't look good and definitely result of large table scan / full table scan. Query shows the same which was involved in CPU, Elapsed times so the query with SQL Id (gmd8djxngttm4) is having some problem.

SQL Ordered by Reads


SQL's in this section list the query resulted in larger disk reads (physical read) rather than reading from buffers. Usually disk reads are undesirable. Excessive disk reads cause performance issues. Usually larger disk reads is due to missing indexes results in full table scan results which results larger reads. In order to address this either user can increase the buffer cache (from DB side if the memory is not a constraint) or they need to tune the query / table to avoid full table scans.

In the above provided screenshot, the SQL Id (gmd8djxngttm4) is the one in the top of the list is doing larger physical reads is the same query which was identified in CPU Time, Elapsed time, Gets etc. Since this query is getting in all table top list this query most probably having problem.

SQL Ordered by Executions:


SQL Queries listed in this table are the queries executed most(Number of executions) in the time period this AWR was taken. Sometimes queries in this list could be fine if the code is executing the query multiple times / the same functionality is executed multiple times results this high number. Check queries in this table is also part of the other tables then it could be a problem and need to take care of.

You can identify in weblogic debug which queries are getting executed for every SOA operation. For eg. Creating a BPEL instance will insert a record into cube_instance table with the below query.

INSERT INTO CUBE_INSTANCE (CIKEY, PARENT_REF_ID, AG_ROOT_ID, TEST_RUN_ID, COMPOSITE_LABEL, STATE, CONVERSATION_ID, EXT_STRING1, MODIFY_DATE, SCOPE_USIZE, STAGE, AT_COUNT_ID, CREATOR, ECID, PARENT_ID, TITLE, PRIORITY, TEST_SUITE, TEST_CASE, METADATA, SCOPE_CSIZE, COMPOSITE_NAME, STATUS, ROOT_ID, DOMAIN_NAME, CREATE_CLUSTER_NODE_ID, OUTCOME, CMPST_ID, EXT_INT1, AG_MILESTONE_PATH, COMPONENTTYPE, PROCESS_TYPE, MODIFIER, CREATION_DATE, AT_DETAIL_ID, COMPONENT_NAME, SCOPE_REVISION, EXT_STRING2, AT_EVENT_ID, COMPOSITE_REVISION, TEST_RUN_NAME, CACHE_...

If anyone is creating multiple instances, then the above query will get executed multiple times and it could be part of the top of the list. If that is the case it could be normal.
You can enable JDBC SQL debug on WLS level to identify what queries are triggered for SOA operation. Please refer JDBC Debug to Identify the SQL Query section for more details.

In the above snapshot, queries in the top of this table list is not listed in any other tables (CPU Time, Elapsed time, Gets or Read), so probably the queries in this table should be fine in this AWR report.

SQL Ordered by Parse Calls:


SQL's listed in this table list the SQL's which are all parsed/re-parsed. Whenever a SQL contains unsafe bind variables, then the statement will get parsed each time. If a SQL statement is parsed many times, it can lead to larger execution time.

Check whether any of the SOA SQL's are involved in the larger parse and if yes, check whether this SQL is part of larger Elapsed Time table as well. If yes we need to check why the query is parsed multiple times and whether it's normal. In the above snapshot, we didn't see any of the SOA SQL's in the top list took higher elapsed time so this table should be fine.

Database Modes - Shared Vs Dedicated

Type of connection to the database can also cause performance issues. Connection to the database can be done in shared mode or dedicated mode. If the database is configured with shared mode, this configuration also can cause performance issues/delay in query processing. In that case, AWR report won't show any of the queries took long time to process. But in thread dumps, threads will be waiting for the database calls to finish.

Sample thread waiting for DB Call to finish:

"[ACTIVE] ExecuteThread: '3' for queue: 'weblogic.kernel.Default (self-tuning)'" id=68 idx=0x130 tid=3996 prio=5 alive, in native, daemon
at jrockit/net/SocketNativeIO.readBytesPinned(Ljava/io/FileDescriptor;[BIII)I(Native Method)
at jrockit/net/SocketNativeIO.socketRead(SocketNativeIO.java:32)
at java/net/SocketInputStream.socketRead0(Ljava/io/FileDescriptor;[BIII)I(SocketInputStream.java)
at java/net/SocketInputStream.read(SocketInputStream.java:129)
at oracle/net/ns/Packet.receive(Packet.java:293)
at oracle/net/ns/DataPacket.receive(DataPacket.java:104)
at oracle/net/ns/NetInputStream.getNextPacket(NetInputStream.java:315)
at oracle/net/ns/NetInputStream.read(NetInputStream.java:260)
at oracle/net/ns/NetInputStream.read(NetInputStream.java:185)
at oracle/net/ns/NetInputStream.read(NetInputStream.java:102)
at oracle/jdbc/driver/T4CSocketInputStreamWrapper.readNextPacket(T4CSocketInputStreamWrapper.java:124)[inlined]
at oracle/jdbc/driver/T4CSocketInputStreamWrapper.read(T4CSocketInputStreamWrapper.java:80)[optimized]
at oracle/jdbc/driver/T4CMAREngine.unmarshalUB1(T4CMAREngine.java:1136)[inlined]

The issue could be due to the database is receiving multiple queries and queries are queued for processing. Queries are executed in the database faster but every client is using the shared connection, queries gets executed only on database when it gets resources. AWR report shows the actual query execution time which is faster because the delay is due to the time wait on the query to be executed due to shared connection.

In such scenario, setting the database property to dedicated mode should help improving the performance. Dedicated mode setting can be done on server as well as client side. Check with DBA to set the dedicated mode setting on server side. For the client side add the property ServerType=dedicated for the connection pool will set the connections created by the pool to be dedicated.

Any changes to datasources properties requires server restart. After restarting the servers, dedicated connection property should help address the performance issue if the performance issue is due to shared connection. It's not always a solution to use dedicated connection. Please check with DBA whether dedicated connection is acceptable before making this change as this reserve the resources for every client which could affect the total DB performance. If  AWR report  shows the query execution is faster and if WLS threads are waiting for database calls to finish, it's worth to try dedicated mode and see whether the issue is due to the shared mode setting in DB.

More details about dedicated and shared mode can be found at
http://download.oracle.com/docs/cd/B28359_01/server.111/b28310/manproc001.htm

Not enough resources on WLS data sources to process the requests

Database query performance impact can be due to the insufficient resources on WLS side as well. This section will help to debug on WLS side to collect more details about the database queries and analyze whether WLS has enough resources to process the database requests and how to troubleshoot the same.

Connection pool waiting

Sometimes SOA performance affects due to not enough connections available in the weblogic connection pool. Below section helps how to analyze the issue.

Usually weblogic server throw the below exception(s) reporting increasing the connection pool count. You may see the following exceptions in the server log if weblogic server connection pool is not having enough connections to serve the requests .

java.sql.SQLException: Internal error: Cannot obtain XAConnection weblogic.common.resourcepool.ResourceLimitException: No resources currently available in pool SOADataSource to allocate to applications, please increase the size of the pool and retry..
at weblogic.common.resourcepool.ResourcePoolImpl.reserveResourceInternal(ResourcePoolImpl.java:577)
at weblogic.common.resourcepool.ResourcePoolImpl.reserveResource(ResourcePoolImpl.java:342)
at weblogic.common.resourcepool.ResourcePoolImpl.reserveResource(ResourcePoolImpl.java:329)
at weblogic.jdbc.common.internal.ConnectionPool.reserve(ConnectionPool.java:417)
at weblogic.jdbc.common.internal.ConnectionPool.reserve(ConnectionPool.java:324)
at weblogic.jdbc.common.internal.ConnectionPoolManager.reserve(ConnectionPoolManager.java:94)
at weblogic.jdbc.common.internal.ConnectionPoolManager.reserve(ConnectionPoolManager.java:63)
at weblogic.jdbc.jta.DataSource.getXAConnectionFromPool(DataSource.java:1677)
at weblogic.jdbc.jta.DataSource.refreshXAConnAndEnlist(DataSource.java:1475)
at weblogic.jdbc.jta.DataSource.getConnection(DataSource.java:446)
......

The above exception is a symptom that there is not enough connections available to service the requests.

We can check how many threads are waiting for connections by colleting the thread dump. Performance will get impacted if more threads are waiting for connections with the below trace.

"orabpel.invoke.pool-4.thread-84" id=263 idx=0x6c tid=12386 prio=5 alive, waiting, native_blocked
-- Waiting for notification on: weblogic/jdbc/common/internal/GenericConnectionPool@0xbe8e1478[fat lock]
at jrockit/vm/Threads.waitForNotifySignal(JLjava/lang/Object;)Z(Native Method)
at java/lang/Object.wait(J)V(Native Method)
at weblogic/common/resourcepool/ResourcePoolImpl.reserveResourceInternal(ResourcePoolImpl.java:531)
^-- Lock released while waiting: weblogic/jdbc/common/internal/GenericConnectionPool@0xbe8e1478[fat lock]
at weblogic/common/resourcepool/ResourcePoolImpl.reserveResource(ResourcePoolImpl.java:342)
at weblogic/jdbc/common/internal/ConnectionPool.reserve(ConnectionPool.java:419)
at weblogic/jdbc/common/internal/ConnectionPool.reserve(ConnectionPool.java:324)
at weblogic/jdbc/common/internal/ConnectionPoolManager.reserve(ConnectionPoolManager.java:94)
at weblogic/jdbc/common/internal/ConnectionPoolManager.reserve(ConnectionPoolManager.java:63)
at weblogic/jdbc/jta/DataSource.getXAConnectionFromPool(DataSource.java:1677)
at weblogic/jdbc/jta/DataSource.refreshXAConnAndEnlist(DataSource.java:1445)
at weblogic/jdbc/jta/DataSource.getConnection(DataSource.java:446)
at weblogic/jdbc/jta/DataSource.connect(DataSource.java:403)
at weblogic/jdbc/common/internal/RmiDataSource.getConnection(RmiDataSource.java:364)

To identify which datasource / connection pool requires more connection do the following.

1. Go to WLS Admin console
2. Go to Environment -> Servers
3. Select the server on which the connection pool needs to be monitored
4. Go to Monitoring -> JDBC
5. Customize the table by adding the below 2 fields

a. Waiting for Connection Current Count
b. Waiting for Connection High Count

This page will list all the datasources/ connection pools targeted to that particular server and how many connections are waiting to get the connection. If more number of connections are waiting, that is not a good which will cause performance impact and also cause stuck threads on the server if the wait time is going to be beyond the thread stuck time (By default it's 10 mins).


Above screenshot shows SOADataSource state is "Overloaded" and also the current wait is 111. There are 111 resources waiting for connection and only one connection is available in the connection pool. The above setup is definitely a problem which will result database calls performance issue.

In SOA, it's normal to increase the invoke threads count in EM Console to meet the requirement (To process more requests). If the connection pool count is not increased with respect to the invoker thread count, then it will cause this kind of contention cause lot of calls to be waiting for connection.

Solution to the above problem is to increase the number of connections in the connection pool.

Steps:

1. Go to WLS Console
2. Select Services -> Datasources -> Select the datasource you want to change the pool size
3. Go to Configuration -> connection pool
4. Change the Maximum Capacity to the count which is required for your environment.




JDBC Debug to identify the queries

Sometimes it is required to identify the list of SQL's executed for a specific operation. To check the list of SQL's got executed in weblogic server, it's easy to enable debug in JDBC level which will capture all the SQL's triggered through JDBC (Datasource - Connection Pool).

Enable Debug to see the SQL's triggered:

Login into WLS Admin console.
Select the SOA Server (need to repeat this for all SOA Servers the debug needs to be collected).
Go to Debug tab
Enable Weblogic -> JDBC -> sql -> DebugJDBCSQL.
Save and activate the changes.

Setting log level for server:

Debug logs getting into server log only when the server logging level is set to debug. Please make sure the server logging level is set to debug for the debug logs to be logged.

Login into WLS Admin console
Select the server (need to repeat this for all servers the logging level to be set)
Go to Logging tab -> Expand Advanced section
Set the Log file Severity level to "Debug".
Save the changes.
Restart the server for the changes to change effect.

If JDBC debug is enabled, SQL's triggered through the datasource will be logged. Below sample was collected for the queries triggered for cube_instance table through JDBCSQL debug.

<Oct 25, 2011 12:33:54 PM MDT> <Debug> <JDBCSQL> <mutsubra-pc> <AdminServer> <orabpel.engine.pool-5.thread-1> <> <BEA1-00B22D118D32C2CE5C8A> <d126c29923b443ab:1a3db08d:1333c594d0b:-8000-0000000000000003> <1319567634097> <BEA-000000> <[[weblogic.jdbc.wrapper.JTAConnection_weblogic_jdbc_wrapper_XAConnection_oracle_jdbc_driver_LogicalConnection-SOADataSource-35, oracle.jdbc.driver.LogicalConnection@151b9890]] prepareStatement(SELECT wi.CIKEY, wi.NODE_ID, wi.SCOPE_ID, wi.COUNT_ID, wi.LABEL, ci.DOMAIN_NAME, ci.COMPONENT_NAME, ci.COMPOSITE_NAME, ci.COMPOSITE_LABEL, ci.COMPOSITE_REVISION, ci.COMPONENTTYPE, ci.PRIORITY, wi.EXP_DATE FROM WORK_ITEM wi, CUBE_INSTANCE ci WHERE wi.CIKEY = ci.CIKEY AND ci.STATE <= 3 AND wi.STATE = 1 AND wi.EXP_DATE is null AND wi.EXP_FLAG = 0 AND wi.EXECUTION_TYPE!= 1 AND wi.MODIFY_DATE< ? AND ci.COMPONENTTYPE = ?)>
<Oct 25, 2011 12:36:38 PM MDT> <Debug> <JDBCSQL> <mutsubra-pc> <AdminServer> <[ACTIVE] ExecuteThread: '2' for queue: 'weblogic.kernel.Default (self-tuning)'> <weblogic> <BEA1-04202D118D32C2CE5C8A> <d126c29923b443ab:1a3db08d:1333c594d0b:-8000-000000000000039c> <1319567798305> <BEA-000000> <[[weblogic.jdbc.wrapper.JTAConnection_weblogic_jdbc_wrapper_XAConnection_oracle_jdbc_driver_LogicalConnection-SOADataSource-212, oracle.jdbc.driver.LogicalConnection@151b9890]] prepareStatement(SELECT count(*) FROM CUBE_INSTANCE ci WHERE ci.COMPONENTTYPE = ? AND ci.DOMAIN_NAME = ? AND ci.COMPOSITE_NAME = ? AND ci.COMPONENT_NAME = ? AND ci.COMPOSITE_REVISION = ?)>
<Oct 25, 2011 12:36:38 PM MDT> <Debug> <JDBCSQL> <mutsubra-pc> <AdminServer> <[ACTIVE] ExecuteThread: '2' for queue: 'weblogic.kernel.Default (self-tuning)'> <weblogic> <BEA1-04222D118D32C2CE5C8A> <d126c29923b443ab:1a3db08d:1333c594d0b:-8000-000000000000039c> <1319567798317> <BEA-000000> <[[weblogic.jdbc.wrapper.JTAConnection_weblogic_jdbc_wrapper_XAConnection_oracle_jdbc_driver_LogicalConnection-SOADataSource-213, oracle.jdbc.driver.LogicalConnection@151b9890]] prepareStatement(SELECT count(*) FROM CUBE_INSTANCE ci WHERE ci.COMPONENTTYPE = ? AND ci.DOMAIN_NAME = ? AND ci.COMPOSITE_NAME = ? AND ci.COMPONENT_NAME = ? AND ci.COMPOSITE_REVISION = ? AND ci.STATE IN (3) )>
<Oct 25, 2011 12:36:38 PM MDT> <Debug> <JDBCSQL> <mutsubra-pc> <AdminServer> <[ACTIVE] ExecuteThread: '2' for queue: 'weblogic.kernel.Default (self-tuning)'> <weblogic> <BEA1-04242D118D32C2CE5C8A> <d126c29923b443ab:1a3db08d:1333c594d0b:-8000-000000000000039c> <1319567798325> <BEA-000000> <[[weblogic.jdbc.wrapper.JTAConnection_weblogic_jdbc_wrapper_XAConnection_oracle_jdbc_driver_LogicalConnection-SOADataSource-214, oracle.jdbc.driver.LogicalConnection@151b9890]] prepareStatement(SELECT count(*) FROM CUBE_INSTANCE ci WHERE ci.COMPONENTTYPE = ? AND ci.DOMAIN_NAME = ? AND ci.COMPOSITE_NAME = ? AND ci.COMPONENT_NAME = ? AND ci.COMPOSITE_REVISION = ? AND ci.STATE IN (6, 10) )>
<Oct 25, 2011 12:36:38 PM MDT> <Debug> <JDBCSQL> <mutsubra-pc> <AdminServer> <[ACTIVE] ExecuteThread: '2' for queue: 'weblogic.kernel.Default (self-tuning)'> <weblogic> <BEA1-04262D118D32C2CE5C8A> <d126c29923b443ab:1a3db08d:1333c594d0b:-8000-000000000000039c> <1319567798332> <BEA-000000> <[[weblogic.jdbc.wrapper.JTAConnection_weblogic_jdbc_wrapper_XAConnection_oracle_jdbc_driver_LogicalConnection-SOADataSource-215, oracle.jdbc.driver.LogicalConnection@151b9890]] prepareStatement(SELECT count(*) FROM CUBE_INSTANCE ci WHERE ci.COMPONENTTYPE = ? AND ci.DOMAIN_NAME = ? AND ci.COMPOSITE_NAME = ? AND ci.COMPONENT_NAME = ? AND ci.COMPOSITE_REVISION = ? AND ci.STATE IN (1) )>
<Oct 25, 2011 12:37:11 PM MDT> <Debug> <JDBCSQL> <mutsubra-pc> <AdminServer> <orabpel.invoke.pool-4.thread-1> <> <BEA1-04BD2D118D32C2CE5C8A> <d126c29923b443ab:1a3db08d:1333c594d0b:-8000-0000000000000406> <1319567831486> <BEA-000000> <[[weblogic.jdbc.wrapper.JTAConnection_weblogic_jdbc_wrapper_XAConnection_oracle_jdbc_driver_LogicalConnection-SOADataSource-256, oracle.jdbc.driver.LogicalConnection@151b9890]] prepareStatement(INSERT INTO CUBE_INSTANCE (CIKEY, PARENT_REF_ID, AG_ROOT_ID, TEST_RUN_ID, COMPOSITE_LABEL, STATE, CONVERSATION_ID, EXT_STRING1, MODIFY_DATE, SCOPE_USIZE, STAGE, AT_COUNT_ID, CREATOR, ECID, PARENT_ID, TITLE, PRIORITY, TEST_SUITE, TEST_CASE, METADATA, SCOPE_CSIZE, COMPOSITE_NAME, STATUS, ROOT_ID, DOMAIN_NAME, CREATE_CLUSTER_NODE_ID, OUTCOME, CMPST_ID, EXT_INT1, AG_MILESTONE_PATH, COMPONENTTYPE, PROCESS_TYPE, MODIFIER, CREATION_DATE, AT_DETAIL_ID, COMPONENT_NAME, SCOPE_REVISION, EXT_STRING2, AT_EVENT_ID, COMPOSITE_REVISION, TEST_RUN_NAME, CACHE_...
